Views: 0 Author: Site Editor Publish Time: 2026-06-05 Origin: Site

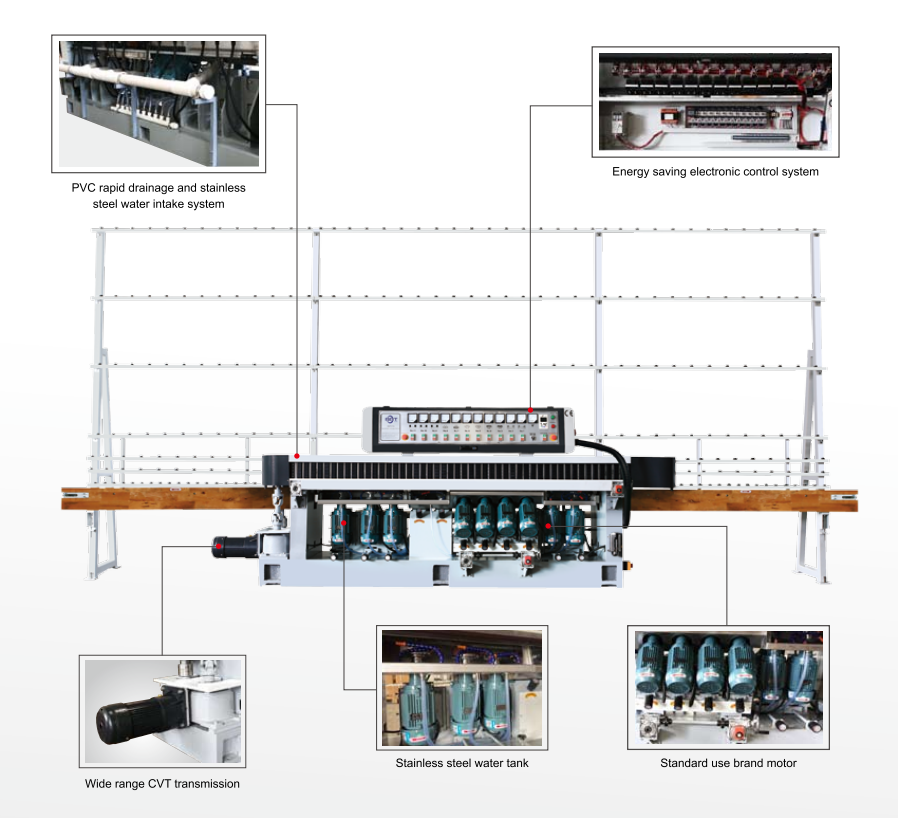

9/11 Motors Glass Straight Line 45° Multilevel Edging Machine - Product Introduction
1. Multi-functional Integrated One-stop Forming
Integrating multiple processing procedures including coarse grinding, fine grinding, chamfering and polishing, the machine can complete the full set of straight edge grinding processes in one go. It eliminates repeated loading and workpiece transfer, greatly simplifies processing procedures and significantly improves production efficiency.
2. 0°-45° Adjustable Angle for Versatile Processing
The 1# to 5# grinding heads support free swinging adjustment from 0° to 45°, enabling precise processing of 45° beveled straight edges according to production requirements. Featuring flexible and accurate angle adjustment, it perfectly meets diverse angled edge processing demands with strong universal applicability.
3. Stepless Speed Regulation for Enhanced Processing Stability
Equipped with a stepless speed change transmission mechanism, the machine allows smooth and infinitely adjustable operating speed and working load. It can match optimal operating parameters based on glass material, thickness and processing techniques, avoiding processing defects caused by speed adjustment jitter and ensuring stable and controllable operation.
4. Flexible Adaptation to Various Glass Thicknesses
Fitted with an adjustable front rail structure, the machine allows operators to flexibly fine-tune the rail spacing according to the thickness of processed glass. It can quickly adapt to flat glass of different thicknesses, featuring wide compatibility and convenient commissioning.
5. Intelligent Configuration for Lower Failure Rate
Comes standard with an automatic clamping system and voltage stabilization system. It realizes automatic and stable positioning of glass during processing to prevent displacement and shaking. Meanwhile, it stabilizes the operating voltage, avoids processing errors and equipment failures caused by voltage fluctuations, and ensures continuous and stable production.
