Raw glass → Loading → Cutting → Edge grinding & chamfering → Drilling & grooving → Washing & drying → Tempering → Coating & screen printing (Optional) → Insulated / Laminated glass processing (Optional) → Quality inspection → Packaging & warehousing

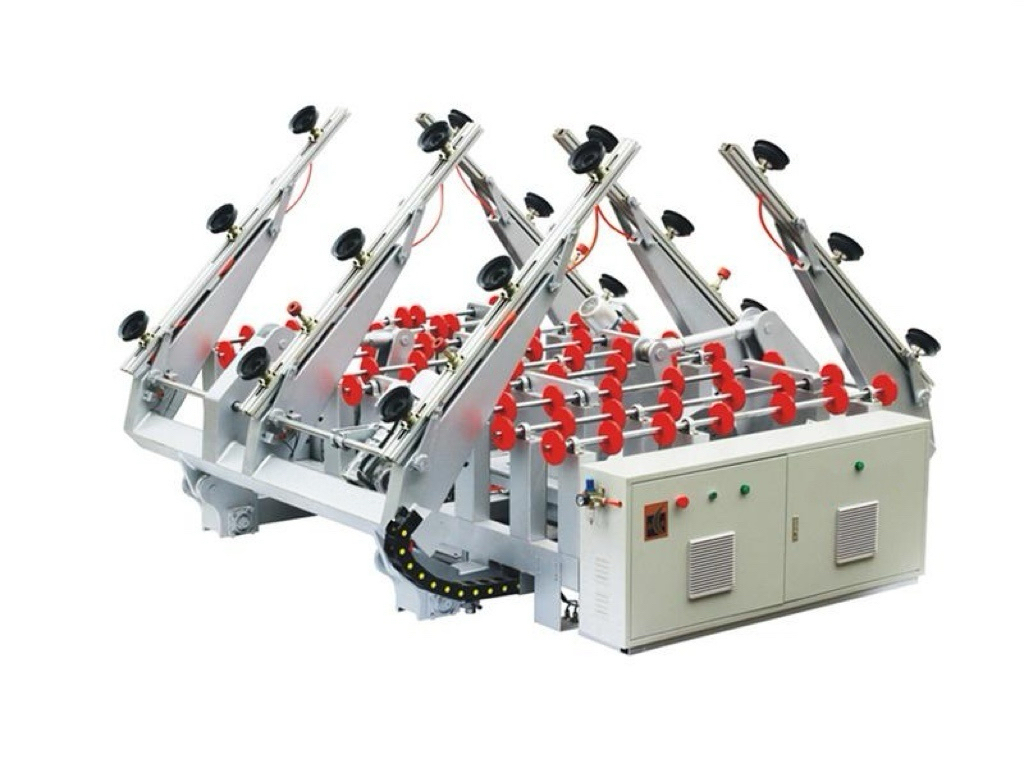

Equipment: Loading table, vacuum manipulator, air flotation table

Function: Automatically pick and transfer glass to avoid scratches and breakage.

Equipment: Full-automatic glass cutting machine, laser cutter (for ultra-thin glass)

Function: Cut regular & special-shaped glass, holes and arcs per drawings. Accuracy: ±0.1mm.

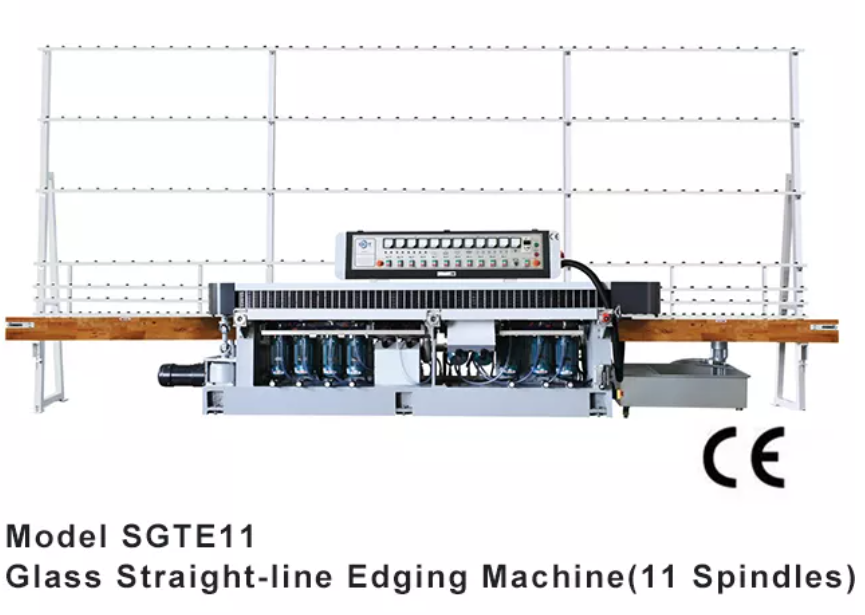

Equipment: Straight-line / double-sided edge grinder, special-shaped edge grinder, chamfering machine, polisher

Function: Remove burrs and micro cracks, prevent edge chipping for better safety and appearance.

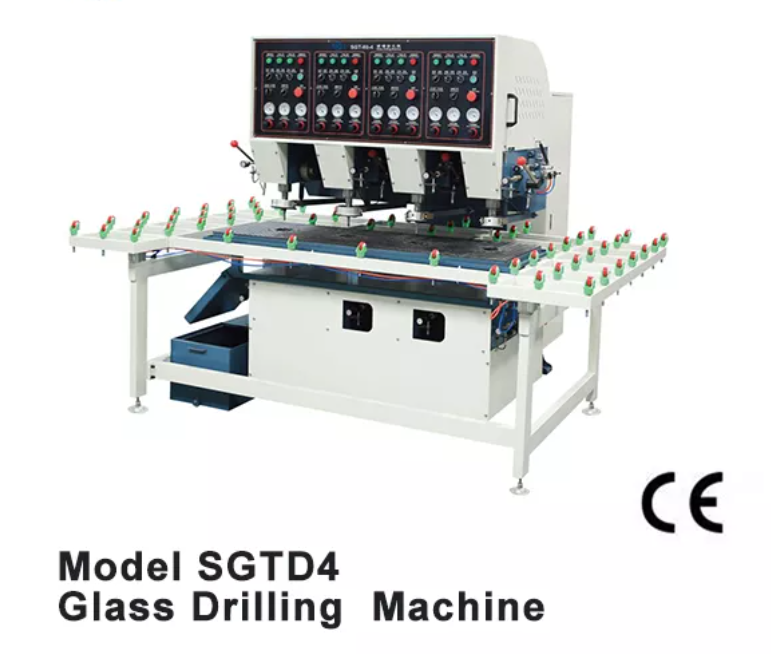

Equipment: Double-head drilling machine, integrated drilling & grooving machine

Function: Process mounting holes and grooves. Aperture: 3–50mm. Up-down drilling avoids edge chipping.

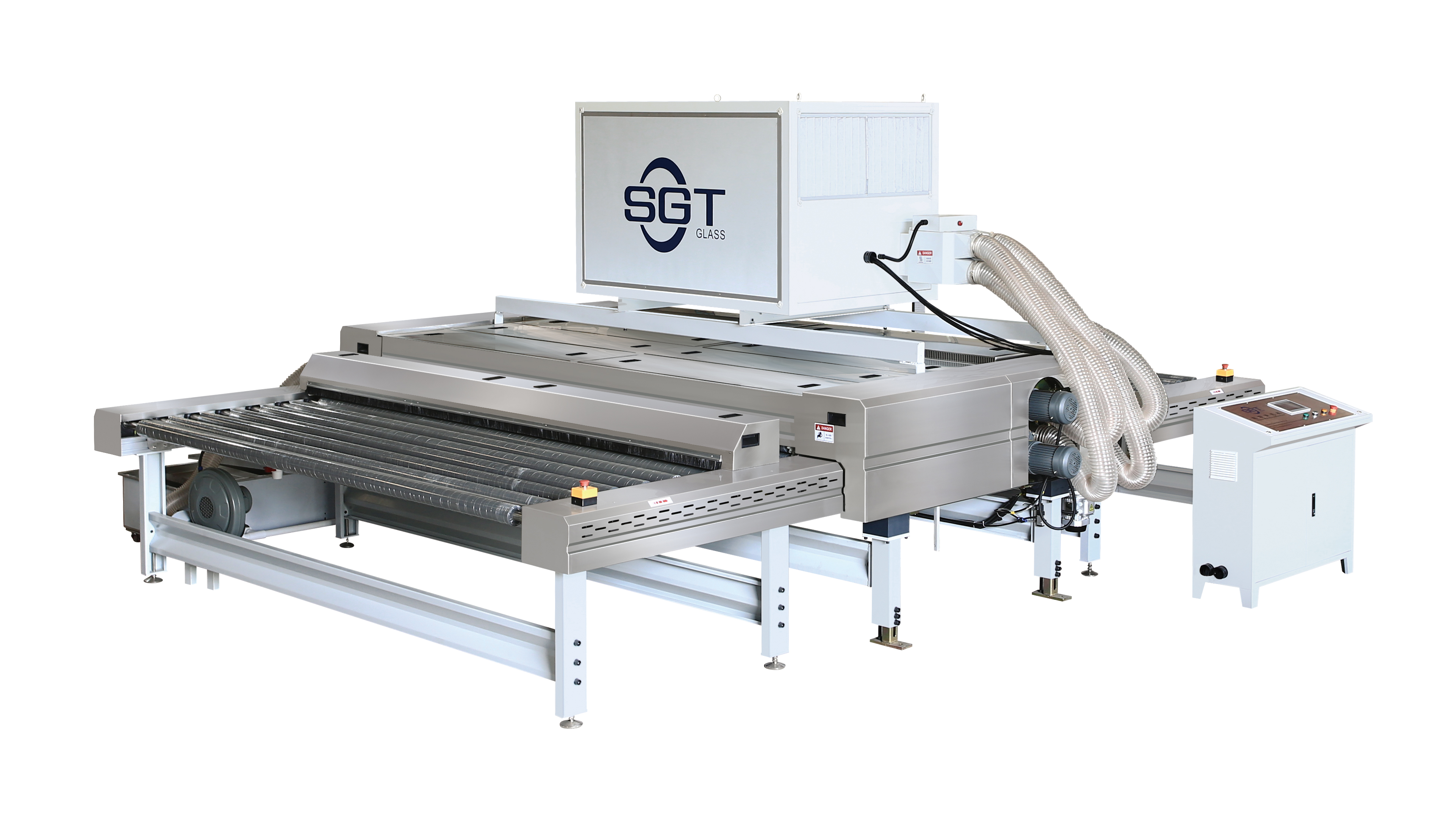

Equipment: Horizontal glass washer

Function: Remove dust, abrasives and oil. Mandatory procedure before tempering and coating.

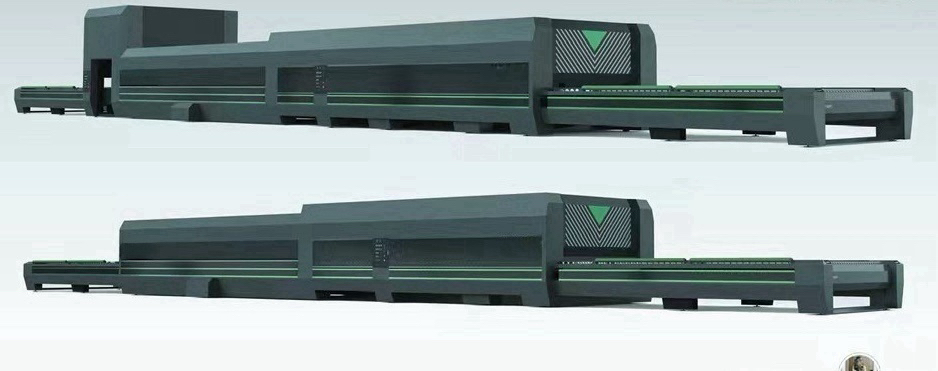

Equipment: Horizontal tempering furnace

Function: Heat and rapidly cool glass to raise strength by 5–10 times. Broken glass turns into granular pieces for safety.

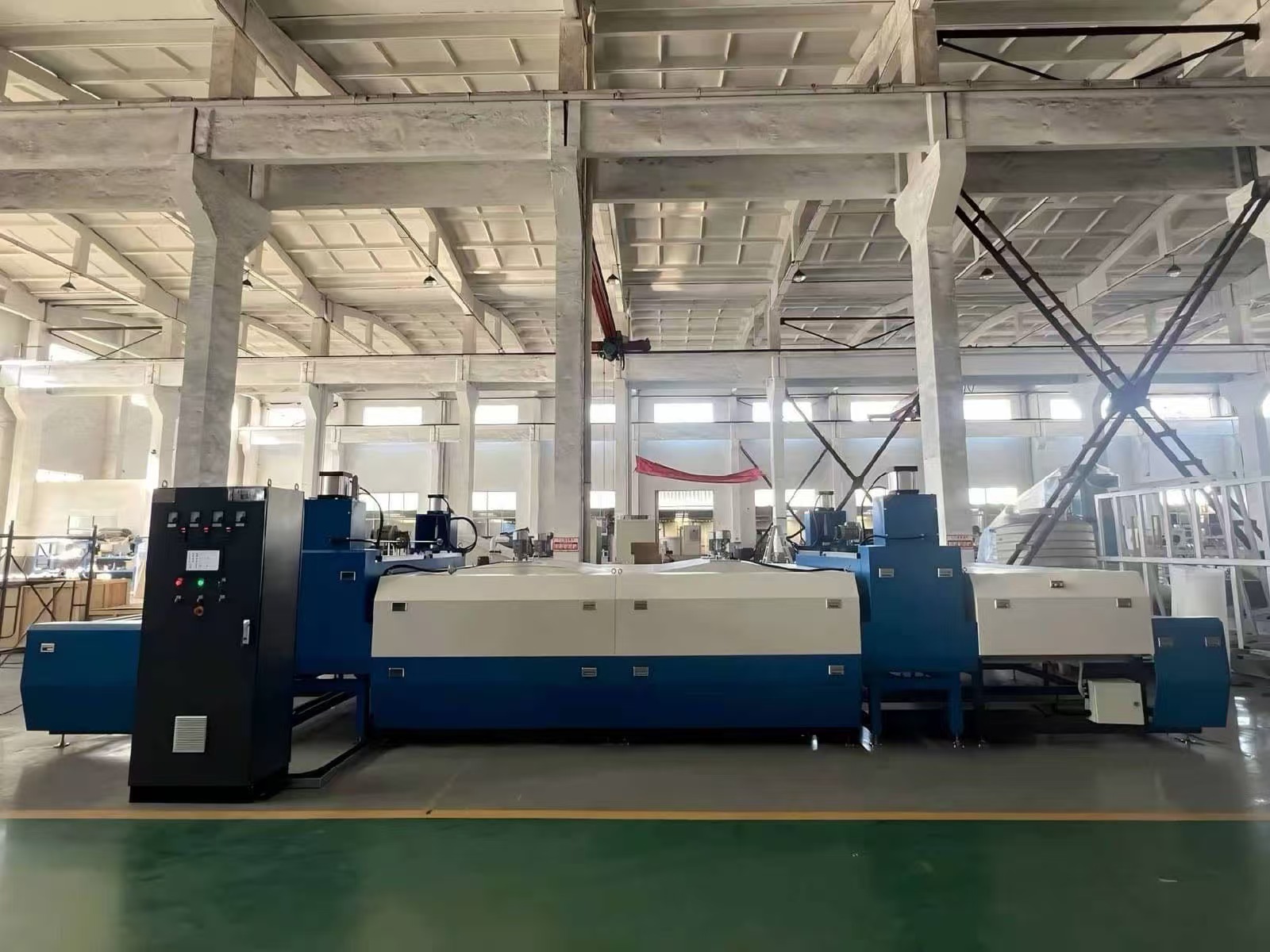

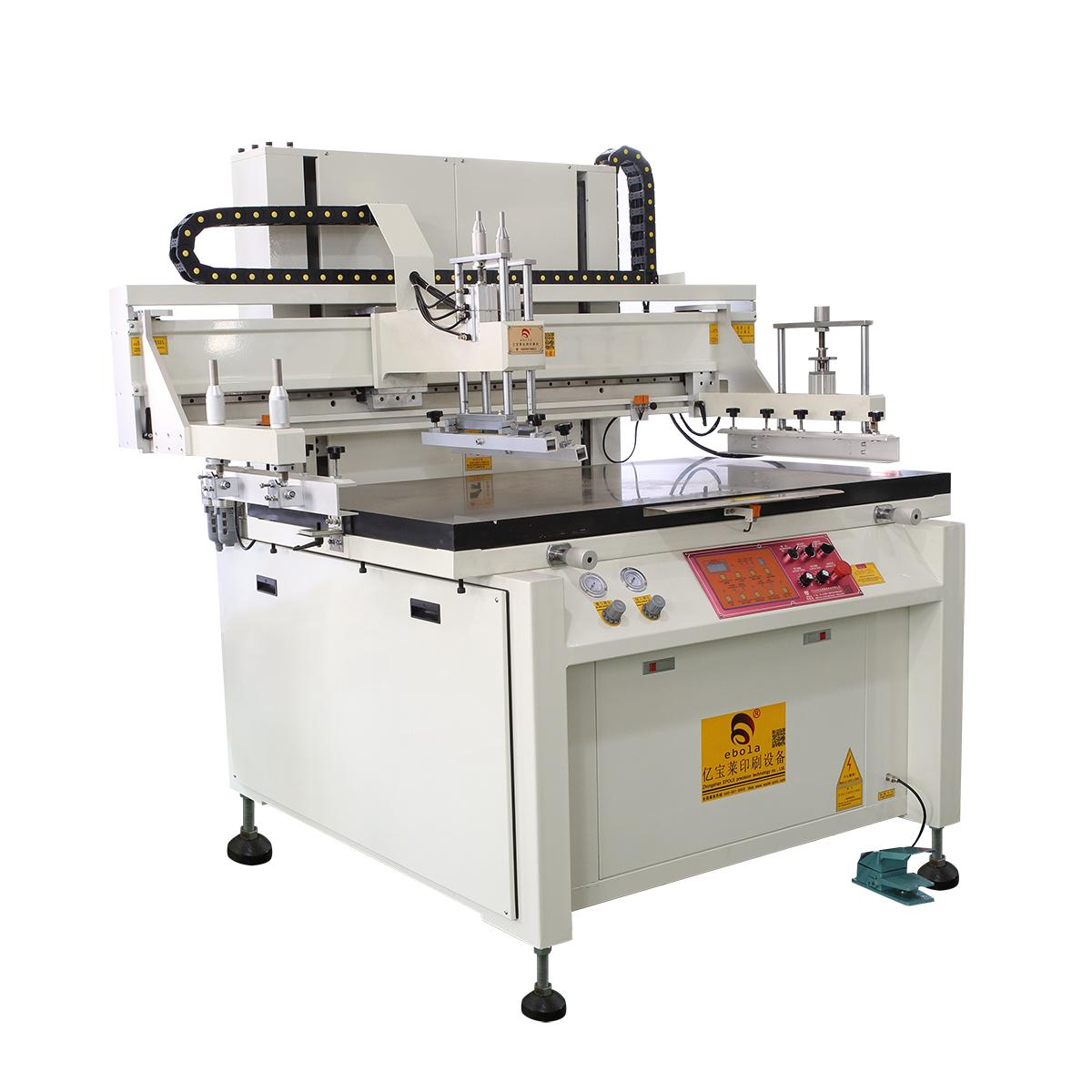

Equipment: Coating machine, screen printer, drying oven

Function: Apply Low-E film, anti-fingerprint film, color patterns and logos.

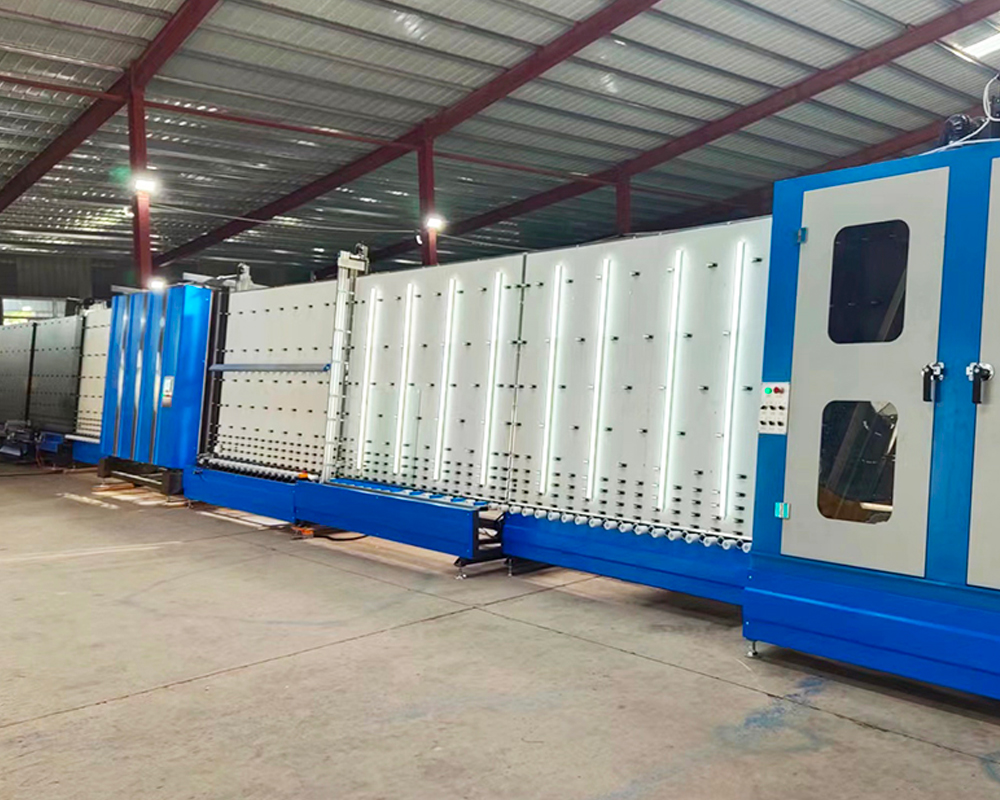

Equipment: Spacer bender, glue spreader, insulated glass production line Function: Double-layer sealed glass with argon filling for heat insulation, sound insulation and anti-condensation.

Equipment: Lamination table, pre-press machine, autoclave

Function: Laminated with PVB film. Broken glass stays attached to prevent splashing.

Equipment: Stress tester, surface defect detector

Inspection items: Dimension, scratches, bubbles, tempering stress and fragment size.

Procedure: Paper padding + foam protection + wooden/carton packaging Function: Prevent collision damage during transportation and storage.
