Introduction to 1-spindle, 2-spindle, 3-spindle and 4-spindle Glass Drilling Machines

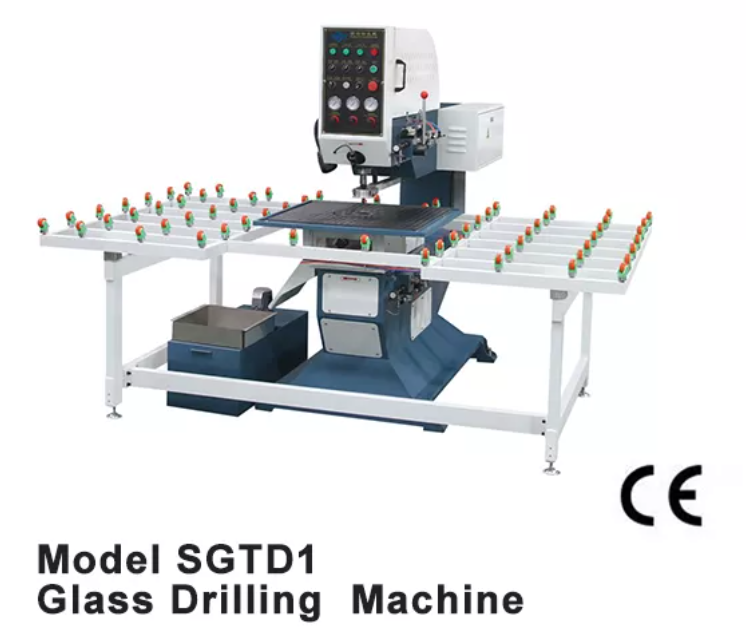

1. Single-spindle Glass Drilling Machine

Core Configuration

This drilling machine adopts automatic control, precision buffering technology, simple operation and high processing efficiency. The hole positioning adopts laser correction and batch fixed positioning, which is convenient for the operator to work, especially suitable for single piece and batch fixed production. The control mode is divided into inching/automatic/continuous automatic processing modes to meet the requirements of diversified production.

Core Advantages

• Ultra-high cost performance: It requires the lowest procurement cost and after-sales maintenance cost, with simple maintenance steps and universal spare parts;

• Excellent processing flexibility: Perfect for special-shaped glass, small single-hole glass parts and workpieces with irregular hole positions;

• Ultra-low failure rate: Adopting simplified mechanical structure without multi-axis synchronous linkage modules, ensuring stable long-term operation.




• MODEL	SGTD1	SGTD1
  Borehole diameter	Φ4-80mm	Φ 4-200mm
  Thickness of drilled glass	3-19mm	3-19mm
  Distance between depth and hole center	1200mm	1200mm
  Voltage/frequency	380V/50Hz	380V/50Hz
  Total power	3.15kw	3.15kw
  Table height	850mm	850mm
  Overall dimensions	2500×2100×1700mm	2500×2100×1700mm
  Bit speed	850r/min, 1400r/min, 3000r/min	850r/min, 1400r/min, 3000r/min

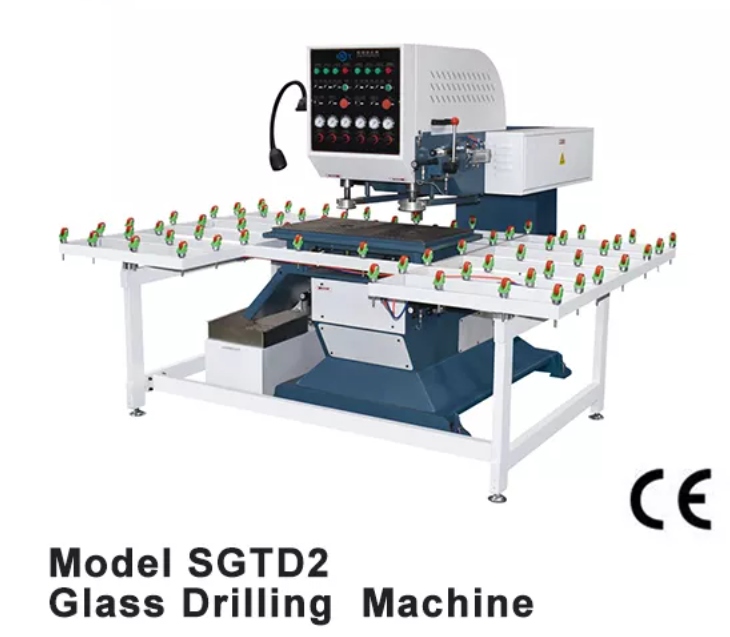

2. Double-spindle Glass Drilling Machine

Core Configuration

The drilling machine adopts automatic control and precision buffering technology, which is simple to operate and high in processing efficiency. The hole positioning adopts laser correction and batch fixed positioning, which is convenient for the operator to work. It is especially suitable for drilling glass with two apertures of one piece of glass, eliminating the process of frequently changing the drilling head, and single piece and batch fixed production. The control mode is divided into inching/automatic/multiple processing modes to meet the requirements of diversified production.

Core Advantages

• Doubled production efficiency: Two holes can be processed simultaneously in one clamping, raising production capacity by 100% compared with single-spindle machines;

• Wide compatibility with conventional workpieces: Fully adaptive to regular dual-hole processing of door & window glass and tempered glass;

• Reasonable overall cost: Priced much lower than multi-spindle machines, balancing production efficiency and equipment budget perfectly.

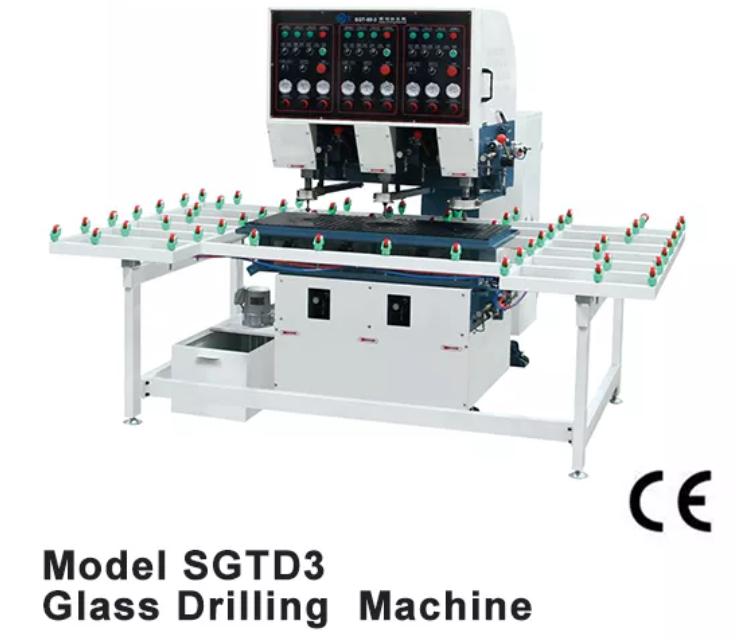

3. Three-spindle Glass Drilling Machine

Core Configuration

Core Advantages

• Strong targeted processing capability: Complete all three-hole drilling procedures in one clamping for fixed three-hole glass without repeated positioning;

• Higher finished product consistency: Avoid positioning deviation caused by repeated clamping and positioning;

• Stable mass production capacity: Well-suited for pipeline mass production of glass with fixed specifications.

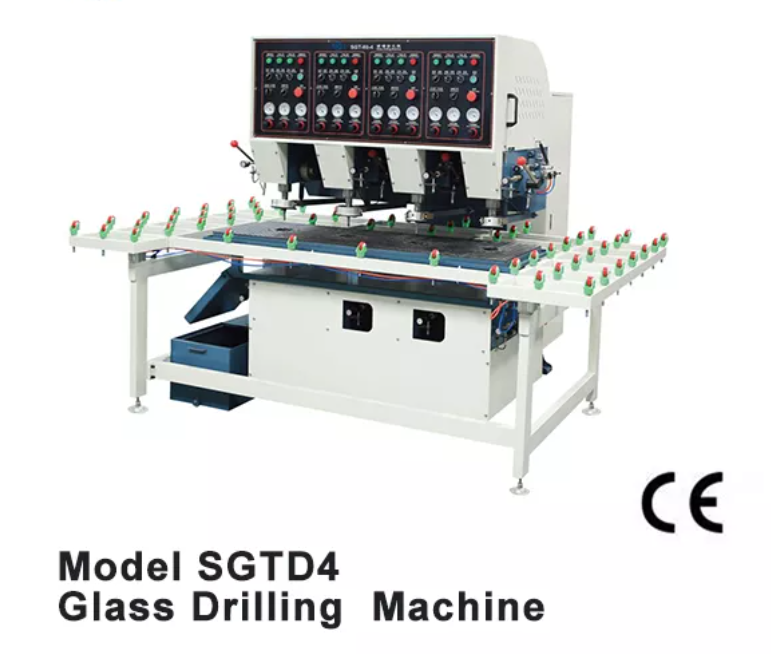

4. Four-spindle Glass Drilling Machine

Core Configuration

Core Advantages

• Top-level production efficiency among all four models: Four holes can be finished in a single clamping, greatly shortening overall processing cycle;

• Perfect for large-format standard glass: Realize one-stop drilling for four corner mounting holes of large door & window glass and curtain wall glass;

• Compatible with automatic production lines: Can be connected with automatic loading and unloading systems to realize unmanned full-automatic drilling production.




• Parameter Item	SGTD2	SGTD3	SGTD4
  Model	SGTD2	SGTD3	SGTD4
  Borehole diameter	Φ4-Φ80mm	Φ4-Φ80mm	Φ4-Φ80mm
  Thickness of drilled glass	3-19mm	3-19mm	3-19mm
  Distance between depth and hole center	1200mm	1050mm	1050mm
  Center distance between two holes	350mm	350mm	350mm
  Voltage/frequency	380V/50Hz	380V/50Hz	380V/50Hz
  Total power	6.25kw	9.25kw	12.25kw
  Table height	850mm	850mm	850mm
  Overall dimensions	2500×2100×1700mm	2500×2100×1800mm	2500×2100×1800mm
  Bit speed	850r/min, 1400r/min,3000r/min	850r/min, 1400r/min,3000r/min	850r/min, 1400r/min,3000r/min
  Gross weight	1000kg	1100kg	1200kg
