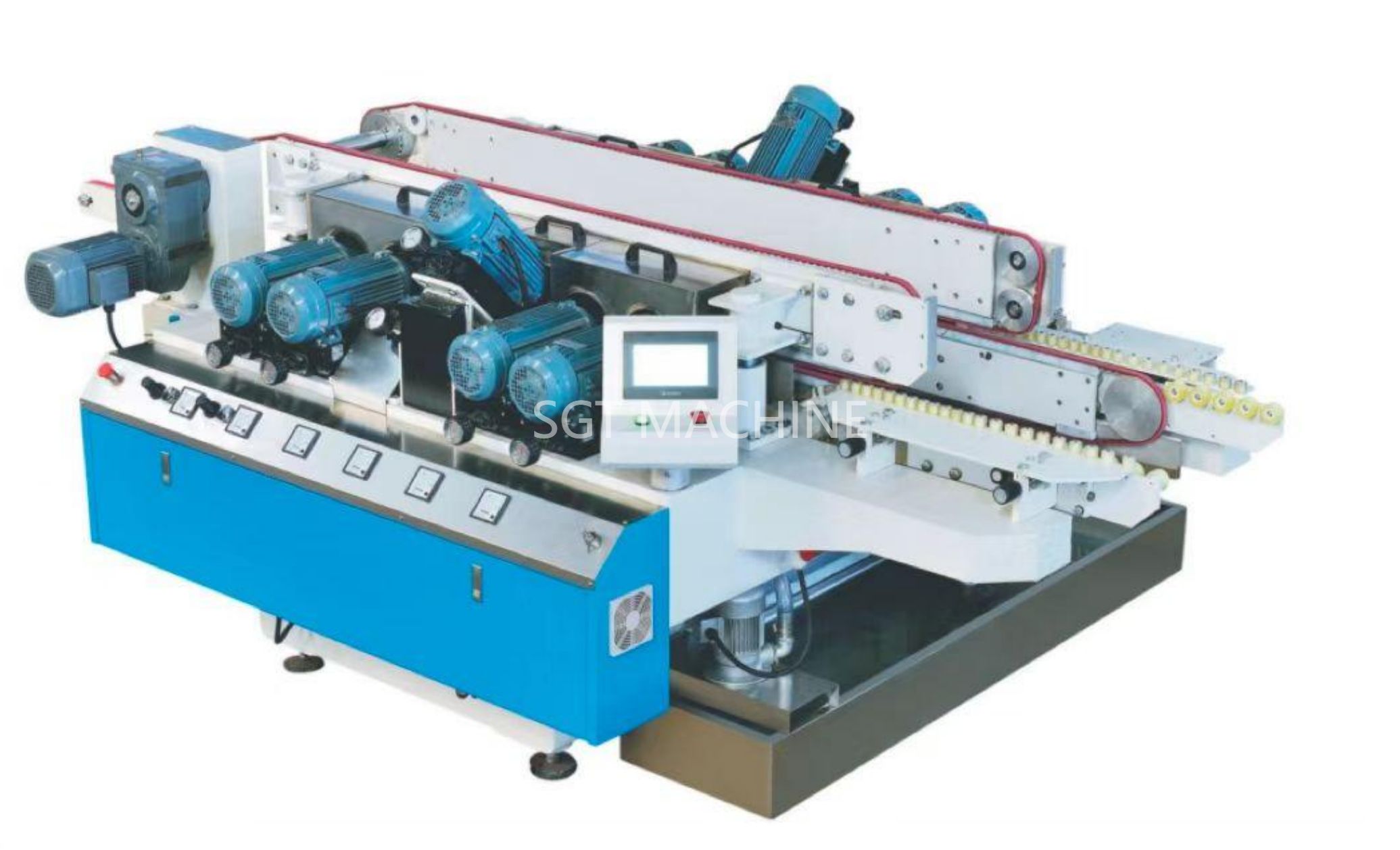

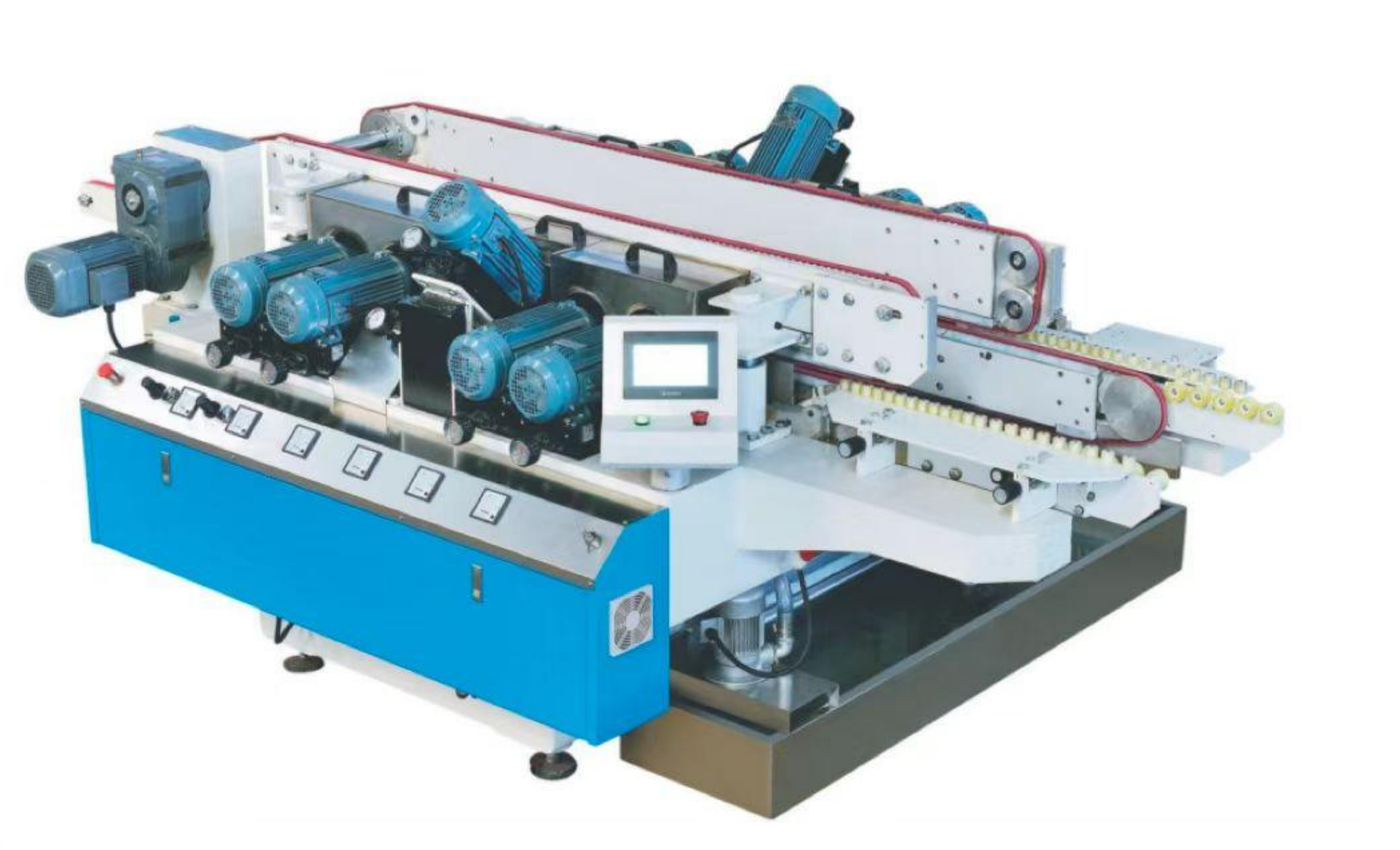

SGDE12040 Glass Double Edging Machine
1. Description: SGDE12040 Glass Double Edging Machine is double belt and double bridge design, it is suitable for process supper narrow glass strip, the machine can equipped with 8 grinding motors or 12 grinding motors, minimum glass width is 40mm, the max.glass width is 500mm.

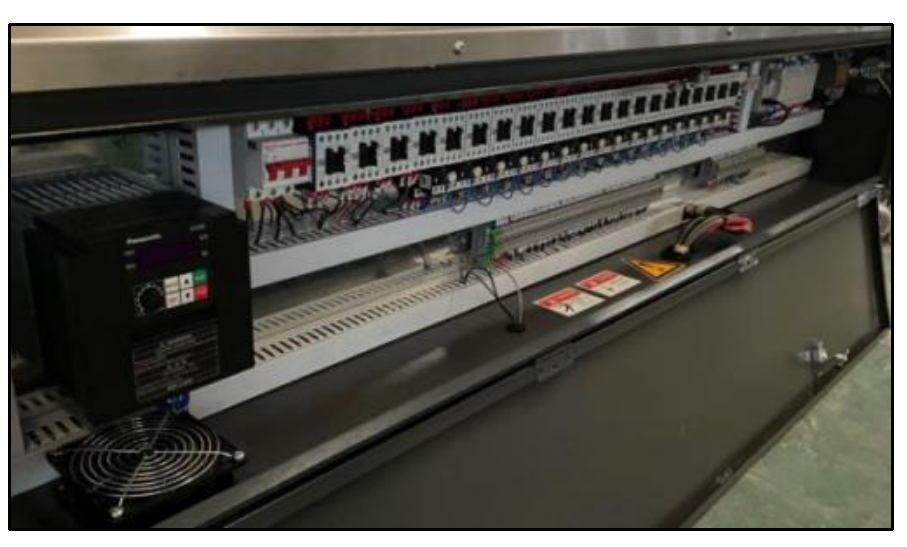

2. Structure Features: 1. The Panasonic PLC system, operation MCGS bright color touch screen interface, operation is simple and convenient.

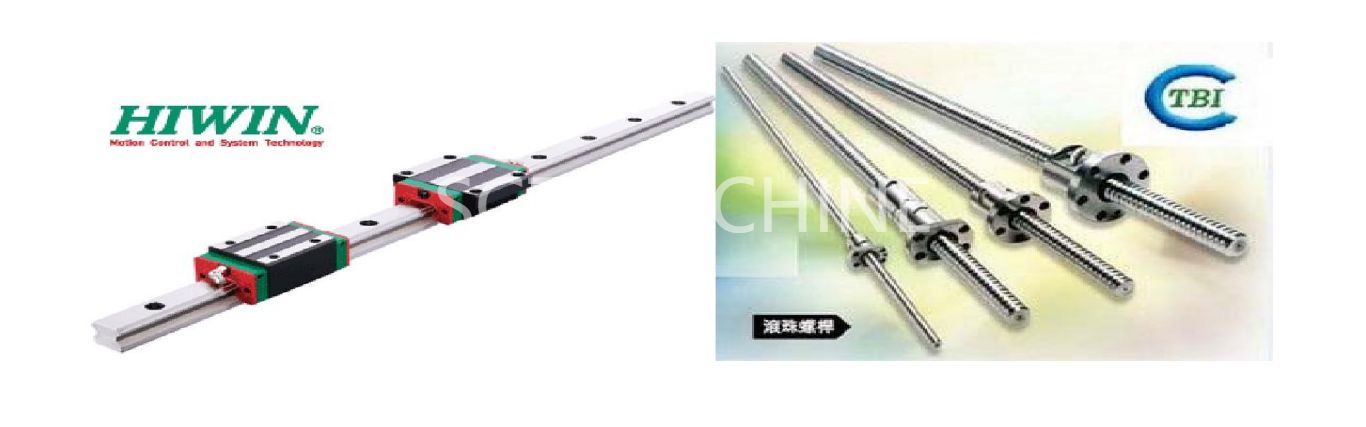

2. Double Taiwan TBI ball screw and HIWIN linear guide rail slider, ensure that the width adjusting precision and speed.

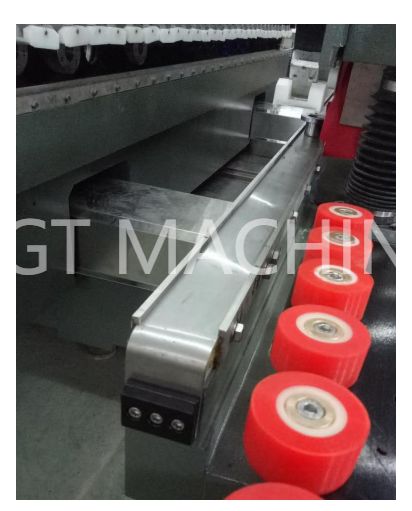

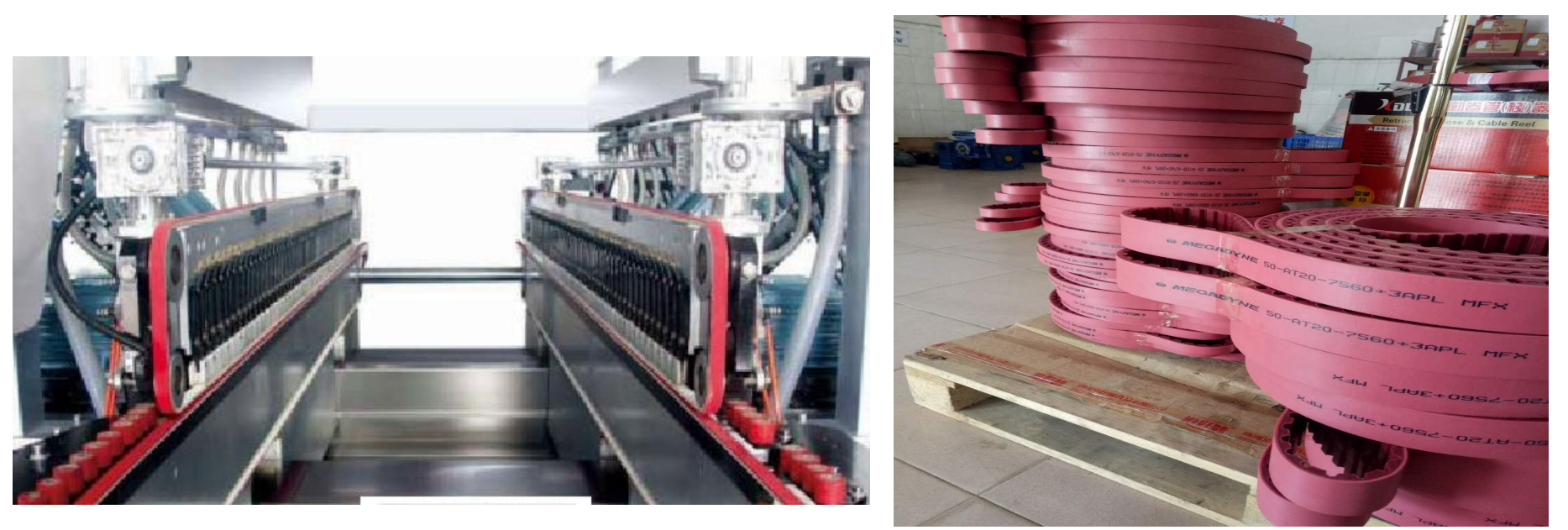

3. Upper & lower conveying belt using Italy synchronous belt, synchronous driving. the upper and lower beam and large regulating grinding wheel, convenient replacement and maintenance.
4. MCGS 10.7 inch touch screen display clearly the working parameters, equipment such as faults, software can guide the operator through the error code to solve the problem, the control system of automatic setting machine into the work.

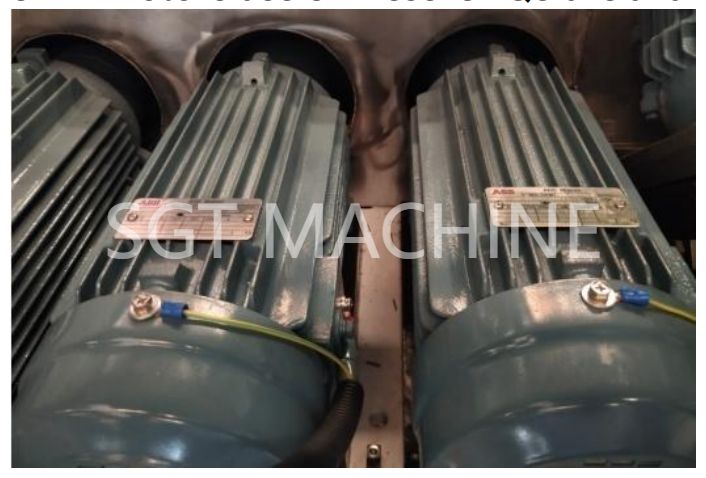

5. All motors use Chinese CDQC are available , ensure the grinding stability,

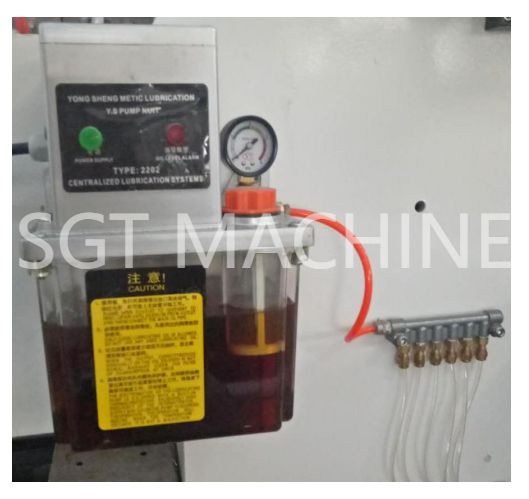

7. Timing to the linear guide and ball screw refueling at the same time.Convenient and reduce maintenance time, to ensure the life of the guide screw.
8. The key points and the protection points of this invention On the basis of the original structure, replace the structure of the material (stainless steel plate), through the rationalization of the structure design, improve the structure of the convenience of replacement and maintenance efficiency
3. Technical Parameters :
| Desctription | SG12028 |
| Motor quantity | 6+6 |
| Transmission speed（m/min） | 0.5—6.5m/min |
| Thickness of glass（mm） | 3—25 mm |
| Width of glass processing（mm） | 28-50mm |
| Installed power | 28kw |
| Voltage | 380V / 50Hz or customized |
| Compressed air input | 0.4—0.8 Mpa |
Wheels configuration：
| No | Name | Specification |
| 1 | Diamond wheel | 100# Φ150 |
| 2 | Diamond wheel | 180# Φ150 |
| 3 | Upper arris resin wheel | 240# Φ130 |
| 4 | Lower arris resin wheel | 240# Φ130 |
| 5 | Resin wheel | 240# x Φ150 |
| 6 | Polishing whee | X5000(x098) |
